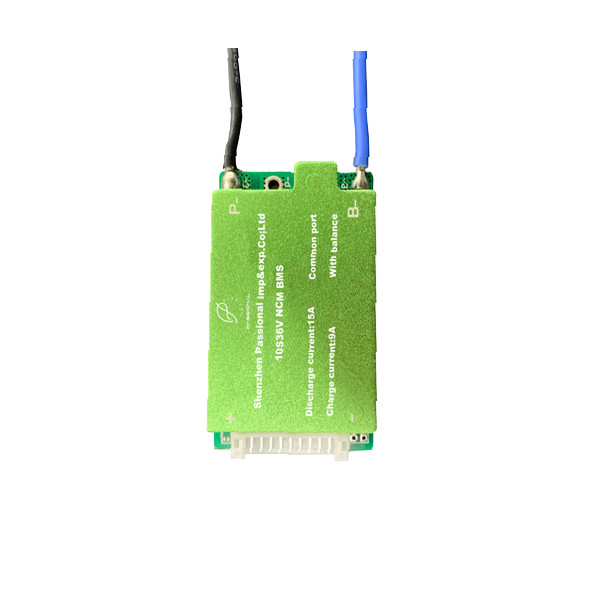

Lithium 21S 72V 70A Battery BMS Board Common Port With Balance

Lithium 21S 72V 70A Battery BMS Board Common Port With Balance
Lithium 21S 72V 70A Battery BMS Board Common Port With Balance Lithium 21S 72V 70A Battery BMS Board Common Port With Balance

Large Image :  Lithium 21S 72V 70A Battery BMS Board Common Port With Balance

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: PLFP-217270
Payment & Shipping Terms:
Minimum Order Quantity: 2-99 Pieces
Price: Negotiable

Lithium 21S 72V 70A Battery BMS Board Common Port With Balance

Description
Keywords: Battery BMS Board Base Material: FR-4
Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ Board Thickness: 2mm
Min. Hole Size: 0.1mm Min. Line Width: 0.065mm
Min. Line Spacing: 0.065mm Surface Finishing: HASL
Product Name: Battery Management Systems Application: Battery Packs
Usage: Lithium Battery Packs Number Of Layers: 1-2-4-6 Layers
Communication: No Size: 125*62*17MM
Weight: 0.185kg Selling Units: Single Item
Single Package Size : 13X8X9 Cm Single Gross Weight: 0.300 Kg
Package Type: Bubble Pack And Carton Brand: Passional
High Light:

21S 72V 70A Battery BMS Board

,

lithium BMS board 21S 72V

,

Battery BMS Board With Balance

Lithium 21S 72V 70A Battery BMS Board Common Port With Balance







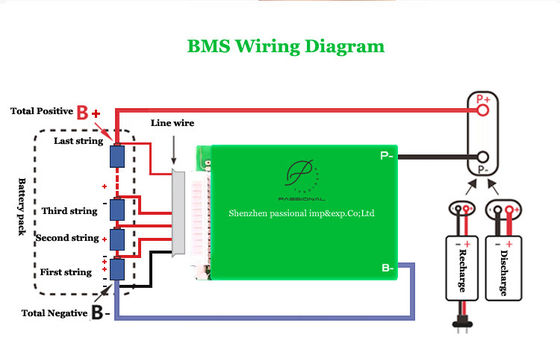

Selection of BMS board:

1. Determine your battery type (ternary/NCM, lithium iron/LFP, lithium titanate/LTO) and determine the number of strings and parallel to the battery pack. Choose according to the number of series.

2. Determine whether the battery pack is charged and discharged in the same port or in different ports. The same port is the same wire for charging and discharging, but separate ports one for Independent circuit of charge and discharge thought.

3. Determine the current value required by the protection board: I=P/U. That is current = power/voltage. Remember, this is only a theoretical value. In fact. We use this theoretical value as a reference. Considering the load, uphill and just starting environment, there are generally more choices for two-wheeled electric vehicles more than twice the theoretical value. Three-wheeled electric vehicles choose more than 3 times this theoretical value. four wheels Low-speed vehicles generally have about 3.5 times. For inverters and energy storage products, 1.2 times is enough. Or refer to the current limit of the electric vehicle controller. ensure. The current value of the shield must be larger than the control current limit value.



Battery BMS Board Parameter:

Over Charge Protection
Balance voltage
Overcharge detection voltage
4.25±0.05V Balance Detection voltage 4.18V
Overcharge detection delay time
1s Balance release detection voltage 4.18V
Overcharge release voltage 4.154±0.05V Balance current 30±5mA
Over-Discharge Protection
Overcurrent Protection
Over-discharge detection voltage
2.7±0.01V
Overcurrent protection current -
Over-discharge detection delay time
IMS
Overcurrent detection delay time 1s
Over-discharge release voltage
3.0±0.1V
Release condition
Cut short load
Short cycle protection Temp. Protection
Detection condition Out load short cycles Charge protection Temp. -5-50°C
Detection delay time 300±30 Discharge protection Temp. -20-70°C
Release condition Cut load NTC thermal sensor
Self-consumption
Working Temp.
Current consumption in normal operation <100uA Temperature. range -40/80℃
Sleep current(over-discharge) ≤20uA



Specification MOS Withstand Voltage Model Size/mm Weight/g
NCM 21S72V30A Common port with balance 100V 25A 125*62*12 1800g
NCM 21S72V35A Common port with balance 100V 25A 125*62*12 185g
NCM 21S72V45A Common port with balance 100V 25A 125*62*17
190g
NCM 21S72V50A Common port with balance
100V
25A 125*62*17 195g
NCM 21S72V60A Common port with balance 100V 25A 125*62*17 200g
NCM 21S72V70A Common port with balance 100V 25A 125*62*17 210g
NCM 21S72V100A Common port with balance 100V 25B 176*68*17 380g
NCM 21S72V120A Common port with balance 100V 25B 176*68*17
390g
NCM 21S72V140A Common port with balance 100V 25B 176*68*17 410g
NCM 21S72V200A Common port with balance 100V 25B 176*68*17 430g
