Product Details:
|
| Keywords: | Battery BMS Board | Base Material: | FR-4 |
|---|---|---|---|
| Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ | Board Thickness: | 1.2mm |
| Min. Hole Size: | 0.1mm | Min. Line Width: | 0.065mm |
| Min. Line Spacing: | 0.065mm | Surface Finishing: | HASL |
| Product Name: | Battery Management Systems | Application: | Battery Packs |
| Usage: | Lithium Battery Packs | MOQ: | 1 PCS |
| Number Of Layers: | 1-2-4-6 Layers | Communication: | No |
| Selling Units: | Single Item | Single Package Size : | 13X8X9 Cm |
| Single Gross Weight: | 0.200 Kg | Package Type: | Bubble Pack And Carton |
| High Light: | 36V 10S Battery BMS Board,15A 20A Battery BMS Board,10S PCB BMS Protection Board |
||

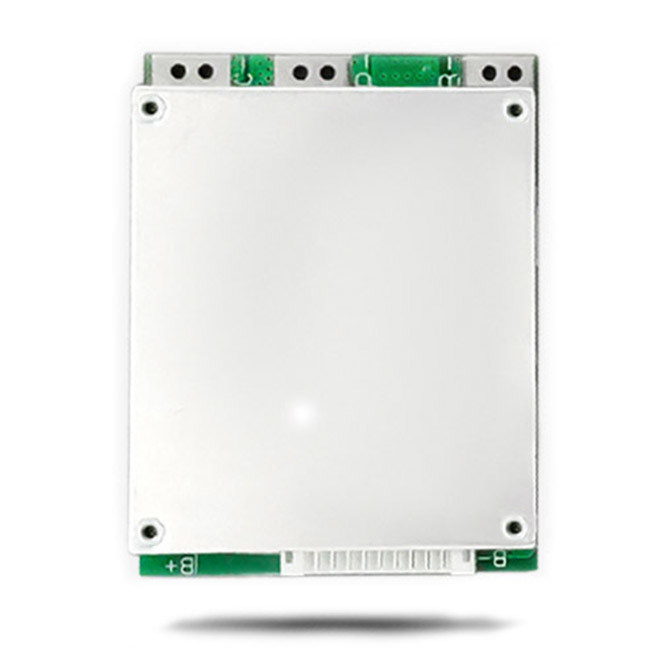

15A 20A 36V 10S Battery BMS Board PCB BMS Protection Board
Battery BMS Board Description:
15A 20A 36V 10S Battery BMS Board PCB BMS Protection Board can be used for Ebike, E-scooter, low-speed vehicles, and other powerplants.
Battery BMS Board Parameter:
|
Item
|
Content
|
Criterion
|
|
Model No.
|
SN-10S20A-C
|
|
|
Discharge current in operation
|
20A
|
Size
|
|
Charge current(comment port)
|
≤20A
|
48*30*9mm
|
|
Charge current(different port)
|
/
|
Weight
|
|
Charge voltage
|
Li-ion 42V(10S)
|
38g
|
|
Overcharge Protection
|
Overcharge detection voltage
|
4.25±0.025V
|
|
Overcharge detection delay time
|
100ms
|
|
|
Overcharge release voltage
|
4.15S±0.025V
|
|
|
Over-discharge Protection
|
Over-discharge detection voltage
|
2.8±0.05V
|
|
Over-discharge detection delay time
|
100±50ms
|
|
|
Over-discharge release voltage
|
3.0±0.1V
|
|
|
Balance Protection
|
Balance voltage
|
Li-ion 4.25±0.025V
|
|
Balance current
|
Li-ion 45±5mA
|
|
|
Overcurrent Protection
|
Overcurrent detection voltage
|
0.2±0.01V
|
|
Overcurrent protection current
|
25±5A
|
|
|
Overcurrent detection delay time
|
10mS
|
|
|
Release condition
|
Cut load
|
|
|
Short Protection
|
Detection condition
|
Exterior condition
|
|
Detection delay time
|
200uS
|
|
|
Release condition
|
Cut short load
|
|
|
Temp. protection
|
over-temp. protection
|
/
|
|
over-temp. release
|
/
|
|
|
Working Temp.
|
Temp.Range
|
-30℃~80℃
|
|
Interior resistance
|
The main loop electrifies the resistance
|
RDS≤15mΩ
|
|
Current consumption
|
Current consume in normal operation
|
≤40.0uA
|
|
Application；Ebike, E-scooter, low-speed vehicle, and other power device
|
||
