Product Details:
|
| Keywords: | LiFePO4 Battery BMS | Material: | AL |
|---|---|---|---|
| Number Of Layers: | 1-2-4-6 Layers | Size: | 125*63*16MM |
| Weight: | 0.185kg | Single Package Size : | 13X8X9 Cm |
| Single Gross Weight: | 0.450 Kg | Package Type: | Bubble Pack And Carton |
| High Light: | P16S48V LFP BMS LiFePO4 48V 16S,P16S48V LFP BMS 48V 16S 200A,LFP BMS 48V 16S 200A P16S48V |
||

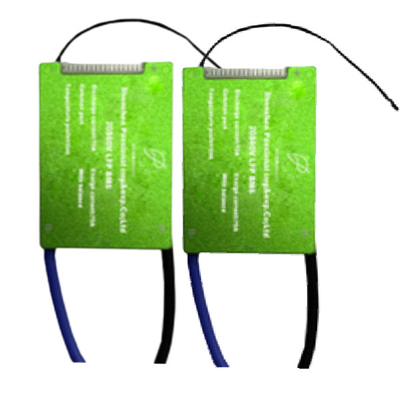

P16S48V LFP BMS LiFePO4 48V 16S 200A Lithium Ion BMS Systems
LiFePO4 Battery BMS Description:
1. The battery status can be accurately grasped in real-time.
2. During the charging and discharging process, the terminal voltage, temperature, charging and discharging current and total voltage of each battery in the battery pack are collected in real-time to prevent the battery from being overcharged or over-discharged. In addition, once the BMS protection board detects that the voltage of any one battery exceeds or falls below the normal range, it will automatically cut off the charging or discharging circuit.
3. If the battery temperature exceeds the working temperature of the battery or the current exceeds the discharge current of the battery, the system will automatically cut off the current path to ensure the safety of the battery and the system.
LiFePO4 Battery BMS Parameter:
| Brand Name | Passional | Application | Battery Packs |
| Certification | MSDS | Usage | Lithium Battery Packs |
| Material | AL | Number of Layers | 1-2-4-6 Layers |
| Model Number | P16S48V LFP | Communication | no |
| Place of Origin | Guangdong, China | Size | 125*63*16MM |
| Product name | Battery Management Systems | Weight | 0.185kg |
FAQ:
Q:1. Do you have a current sample in stock?
A: Most regular one we have. usually, we will ship out 3 days after you paid.
Q:2. What are the common ports and separate ports? what is the difference?
A: We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current is different, discharge current 16A, charge current 8A.
Q:3. What current BMS should I choose?
A: Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.
