Product Details:
|
| Keywords: | LiFePO4 Battery BMS | Base Material: | FR-4 |
|---|---|---|---|
| Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ | Board Thickness: | 2mm |
| Number Of Layers: | 1-2-4-6 Layers | Size: | 125*63*16MM |
| Weight: | 0.185kg | Selling Units: | Single Item |
| Single Gross Weight: | 0.300 Kg | Project Name: | Battery Management Systems |
| High Light: | 60V 70A LiFePO4 Battery Management System,20S LiFePO4 Battery Management System,Common Port PCB smart bms 20s |
||

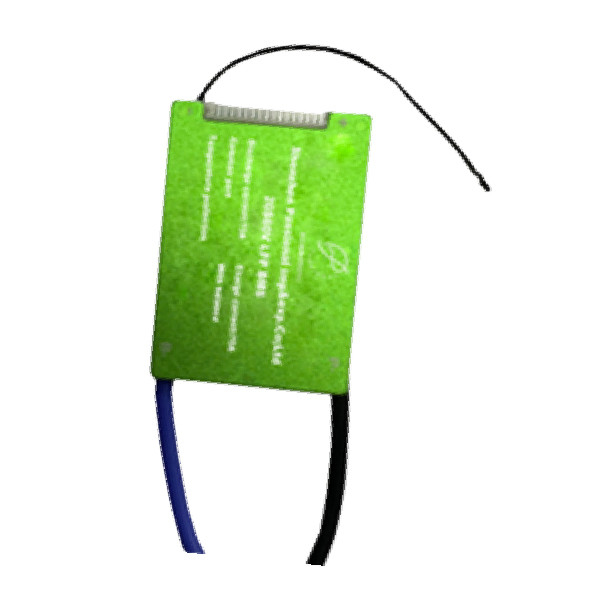

The 20S 60V 70A LiFePO4 Battery Management System Common Port PCB
LiFePO4 Battery BMS Description:
|
SPECIFICATION
|
MOS WITHSTAND VOLTAGE
|
MODEL
|
SIZE/mm
|
WEIGHT
|
|
LFP 20S60V30A Common port with balance
|
100V
|
25A
|
125*62*12
|
360g
|
|
LFP 20S60V35A Common port with balance
|
100V
|
25A
|
125*62*12
|
365g
|
|
LFP 20S60V45A Common port with balance
|
100V
|
25A
|
125*62*17
|
365g
|
|
LFP 20S60V50A Common port with balance
|
100V |
25A
|
125*62*17
|
370g
|
|
LFP 20S60V60A Common port with balance
|
100V
|
25A
|
125*62*17
|
375g
|
|
LFP 20S60V70A Common port with balance
|
100V
|
25A
|
125*62*17
|
375g
|
|
LFP 20S60V100A Common port with balance
|
100V
|
25B
|
176*68*17
|
380g
|
|
LFP 20S60V120A Common port with balance
|
100V
|
25B
|
176*68*17
|
390g
|
|
LFP 20S60V140A Common port with balance
|
100V
|
25B
|
176*68*17
|
410g
|
|
LFP 20S60V200A Common port with balance
|
100V
|
25B
|
176*68*17
|
430g
|
Our Services:
1. We offer We provide customers with one-stop procurement services.
2. Here you can find all the main accessories related to lithium batteries.
3. Save time and energy for customers.
LiFePO4 Battery BMS FAQ:
Q:1. What is your MOQ?
A: 1pc is OK. small orders are also welcome.
Q:2. What current BMS should I choose?
A: Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.
Q:3. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, especially function and etc. we suggest checking delivery time case by case.
