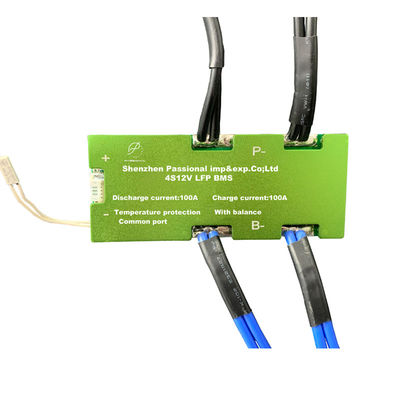

100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System

100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System
100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System

Large Image :  100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System

Product Details:
Place of Origin: China
Brand Name: Passional
Certification: MSDS
Model Number: P16S48V LFP
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiable

100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System

Description
Keywords: Battery Management Systems Material: AL
Size: 125*63*16MM Weight: 0.185kg
Selling Units: Single Item Single Package Size : 13X8X9 Cm
Single Gross Weight: 0.450 Kg Package Type: Bubble Pack And Carton
High Light:

4S 12V LiFePO4 Battery BMS

,

bms lifepo4 4s 100a 12v

,

BMS Solar Battery Management System

100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System



LiFePO4 Battery BMS Description:

SPECIFICATION MOS WITHSTAND VOLTAGE MODEL
SIZE/MM
WEIGHT/G
LFP 4S 12V35A Common port with balance 40V
07S
73*43*9
65
LFP 4S12V45A Common port with balance 40V
07S
73*43*9
70
LFP 4S12v60A Common port with balance 30V DY07S 150*62*12
225
LFP 4S12v80A Common port with balance
30V
DY07S 150*62*12
235

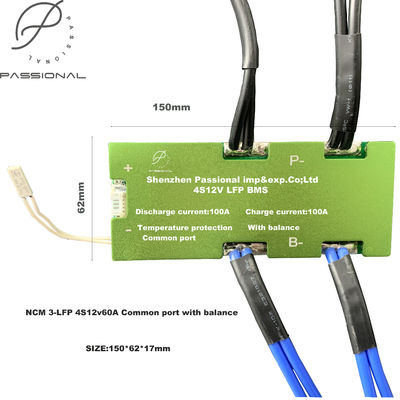

LFP 4S12v100A Common port with balance 30V DY07S 150*62*17
330
LFP 4S12v120A Common port with balance 30V DY07S 150*62*17
335
LFP 4S12v200A Common port with balance 30V DY07S 150*62*17
390



LiFePO4 Battery BMS Parameter:

Brand Name Passional Application Battery Packs
Certification MSDS Usage Lithium Battery Packs
Material AL Number of Layers 1-2-4-6 Layers
Model Number P16S48V LFP Communication no
Place of Origin Guangdong, China Size 125*63*16MM
Product name Battery Management Systems Weight 0.185kg



LiFePO4 Battery BMS FAQ:

Q:1. What current BMS should I choose?

A: Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.



Q:2. OEM&ODM are available?

A: Sure, OEM&ODM are welcome and the Logo can be customized too.



Q:3. What are the common port and separate port? what is the difference?

A: We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current is different, discharge current 16A, charge current 8A.



100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 0


100A 4S 12V LiFePO4 Battery BMS Solar Battery Management System 1
