Product Details:
|
| Keywords: | LiFePO4 Battery BMS | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
|---|---|---|---|
| Product Name: | Battery Management Systems | Application: | Battery Packs |
| Usage: | Lithium Battery Packs | Number Of Layers: | 3 Layers |
| Customize: | Heat Function | Size: | 180MM*100MM*18MM |
| High Light: | 4S 200A Li Ion Battery BMS,Li Ion Battery BMS With Heat Function,Common Port BMS |
||

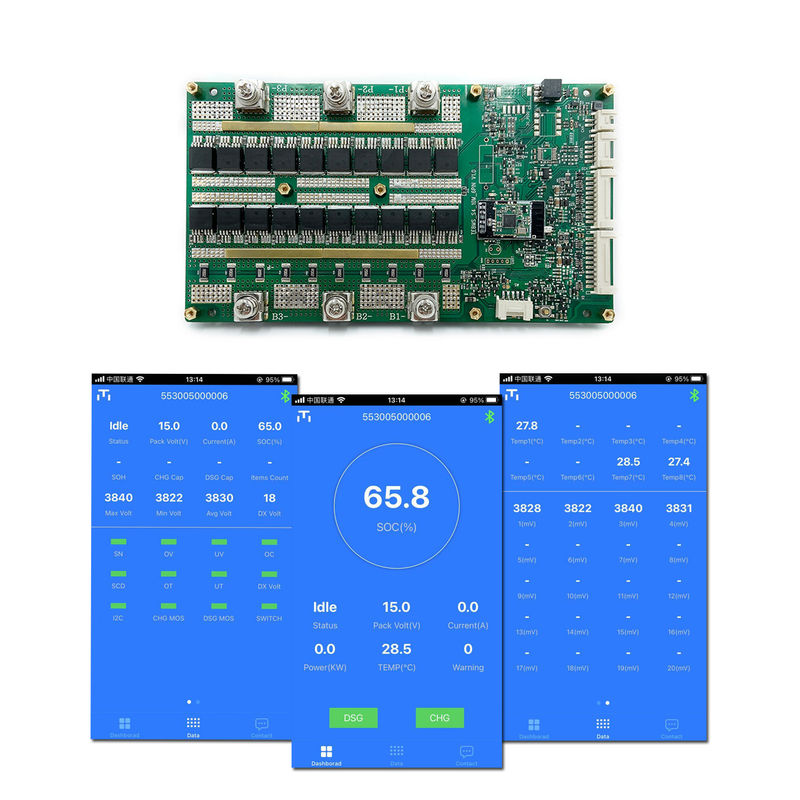

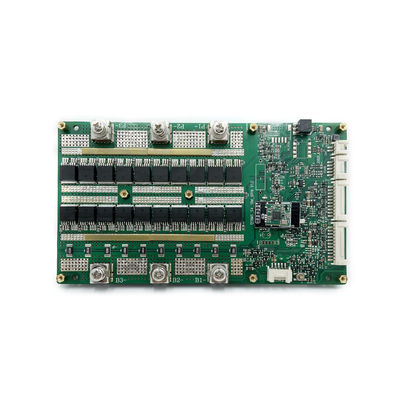

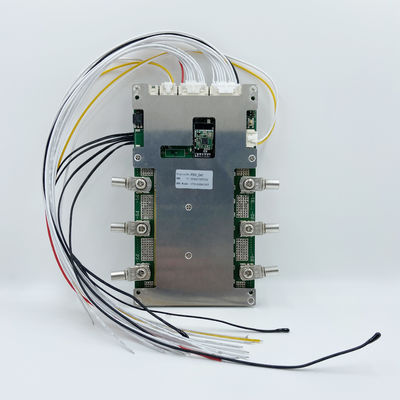

LiFePO4 Battery BMS Description:
The lithium iron phosphate battery BMS protection board can accurately grasp the battery status in real-time. During the charging and discharging process, the terminal voltage, temperature, charging and discharging current and total voltage of each battery in the battery pack are collected in real-time to prevent the battery from being overcharged or over-discharged. In addition, once the BMS protection board detects that the voltage of any one battery exceeds or falls below the normal range, it will automatically cut off the charging or discharging circuit. If the battery temperature exceeds the battery's operating temperature or the current exceeds the battery's discharge current, the system will automatically cut off the current path to ensure the safety of the battery and the system.
| Model Number | PLLFP-04200 | Product name | Battery Management Systems |
| Place of Origin | Guangdong, China | Application | Battery Packs |
| Brand Name | Passional | Usage | Lithium Battery Packs |
| Base Material | FR-4 | Number of Layers | 3 Layers |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Customize | Heat function |
| Board Thickness | 2mm | Size | 180MM*100MM*18MM |
| Min. Hole Size | 0.1mm | Weight | 0.375kg |
| Min. Line Width | 0.065mm | Function | Balance Function |
| Min. Line Spacing | 0.065mm | Color | Silver |
| Surface Finishing | HASL | Material | Aluminum |
FAQ:
Q:1. Do you have a current sample in stock?
A: Most regular one we have. usually, we will ship out 3 days after you paid
Q:2. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, especially function and etc. we suggest checking delivery time case by case.
Q:3. The relationship between Battery capacity and BMS current?
A: There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but relies on
continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.
