Product Details:
|
| Base Material: | FR-4 | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
|---|---|---|---|
| Board Thickness: | 2mm | Min. Hole Size: | 0.1mm |
| Min. Line Width: | 0.065mm | Min. Line Spacing: | 0.065mm |
| Surface Finishing: | HASL | Product Name: | Battery Management Systems |
| Usage: | Lithium Battery Packs | Number Of Layers: | 3 Layers |
| Communication: | No | Size: | 180MM*100MM*18MM |
| Weight: | 0.375kg | Function: | Balance Function |
| Color: | Silver | Material: | Alumimum |
| Selling Units: | Single Item | Single Package Size : | 20X15X5 Cm |
| Single Gross Weight: | 0.400 Kg | Package Type: | Bubble Pack And Carton |
| High Light: | 50A Smart BMS Battery,100A Lithium Ion Battery BMS,FR4 Lithium Ion Battery BMS |
||

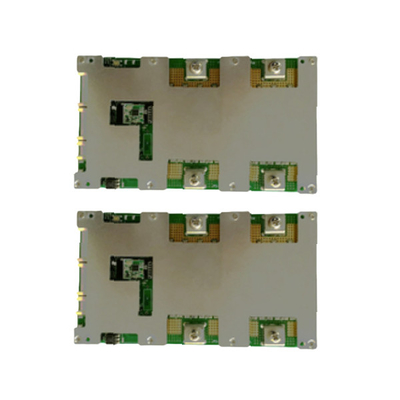

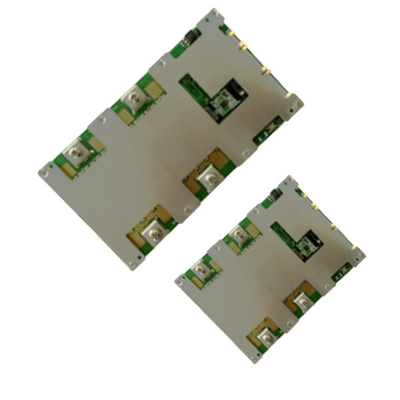

20S 72V Lithium Ion Battery Smart BMS Battery RS232 Bluetooth APP 50A 100A
Smart BMS Battery Description:
The BMS battery management system unit includes a BMS battery management system, a control module, a display module, a wireless communication module, electrical equipment, a battery pack that supplies power to the electrical equipment, and a collection module that collects battery information from the battery pack. The BMS battery management system is connected to the wireless communication module and the display module respectively through the communication interface, the output end of the acquisition module is connected to the input end of the BMS battery management system, the output end management system of the BMS battery is connected to the input end of the control module, and the control module is respectively Connected to the battery pack and electrical equipment, the BMS battery management system is connected to the Server through a wireless communication module.
Smart BMS Battery Parameter:
| Base Material: | FR-4 | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
|---|---|---|---|
| Board Thickness: | 2mm | Min. Hole Size: | 0.1mm |
| Min. Line Width: | 0.065mm | Min. Line Spacing: | 0.065mm |
| Surface Finishing: | HASL | Product Name: | Battery Management Systems |
| Application: | Battery Packs | Usage: | Lithium Battery Packs |
| Number Of Layers: | 3 Layers | Communication: | No |
| Size: | 180MM*100MM*18MM | Weight: | 0.375kg |
| Function: | Balance Function | Color: | Silver |
| Material: | Aluminum | Selling Units: | Single Item |
| Single Package Size : | 20X15X5 Cm | Single Gross Weight: | 0.400 Kg |
Smart BMS Battery FAQ:
1. What type of charger should I choose?
Lithium batteries must choose a specific charger, do not use Charger for a Lead-acid battery, for a lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect against BMS overcharge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2. What current BMS should I choose?
Take 10S36V as an example: what current BMS you choose relies on your E-bicycle Motor power and the current limitation of the controller. eg., choose 16A for below 350W, 25A for below 500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one in all, continue current shall be higher than a current limitation in Controller.
3. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same as with the voltmeter. if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.0
