Product Details:
|
| Keywords: | Battery Management Systems | Base Material: | FR-4 |
|---|---|---|---|
| Surface Finishing: | HASL | Number Of Layers: | 1-2-4-6 Layers |
| Communication: | No | Selling Units: | Single Item |
| Single Package Size : | 13X8X9 Cm | Single Gross Weight: | 0.200 Kg |
| High Light: | FR4 Li Ion Battery BMS,HASL Li Ion Battery BMS,35A Li Ion Battery Management System |
||

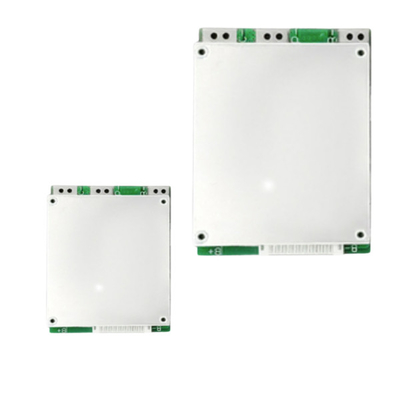

36V BMS 10S 35A Battery Management System Lithium Ion For E Scooter
Li-Ion Battery BMS Description:
The positive electrode material of lithium battery is lithium cobalt oxide LiCoO2, ternary material Ni+Mn+Co, lithium manganate LiMn2O4 plus conductive agent and binder, which is coated on aluminum foil to form the positive electrode, and the negative electrode is layered graphite plus conductive agent and binder. The agent is coated on the copper foil base tape, and the more advanced negative electrode layered graphite particles have used nano-carbon.
1. Slurry: Mix the powdered positive and negative active materials with special solvents and binders, stir evenly, and make positive and negative material slurry.
2. Coating film: The positive and negative electrode slurry is uniformly coated on the surface of the metal foil by an automatic coating machine, and automatically cut into positive and negative electrode sheets after automatic drying.
3. Assembly: According to the top-down order of positive and negative electrode sheet-diaphragm-negative electrode sheet-diaphragm, winding the process of injecting electrolyte, sealing, welding the positive and negative electrodes, that is, the battery assembly process is completed, and it is made Finished battery.
4. Formation: Put the finished battery into the test cabinet for charge and discharge test, screen out qualified finished batteries, and wait for delivery.
Li-Ion Battery BMS Parameter:
| Model Number | PN-3635D | Surface Finishing | HASL |
| Base Material | FR-4 | Product name | Battery Management Systems |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Application | Battery Packs |
| Board Thickness | 1.2mm | Usage | Lithium Battery Packs |
| Min. Hole Size | 0.1mm | MOQ | 1 PCS |
| Min. Line Width | 0.065mm | Number of Layers | 1-2-4-6 Layers |
| Min. Line Spacing | 0.065mm | Communication | no |
Li-Ion Battery BMS Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. Quick reply, We will reply to your inquiry within 24 hours.
4. Our patent repair device helps you solve the battery lifetime as well as the maintenance problem, cutting your aftersale cost.
