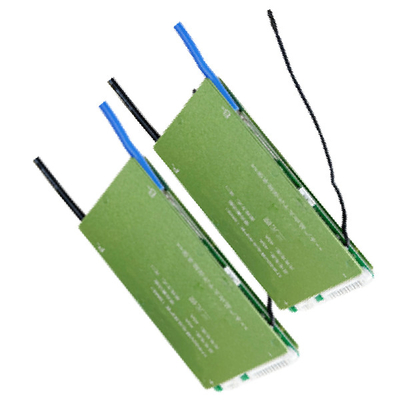

Common Port With Balance Li Ion Battery BMS , PCB Protection Board BMS 17S 60V 45A

Common Port With Balance Li Ion Battery BMS , PCB Protection Board BMS 17S 60V 45A
Common Port With Balance Li Ion Battery BMS , PCB Protection Board BMS 17S 60V 45A

Large Image :  Common Port With Balance Li Ion Battery BMS , PCB Protection Board BMS 17S 60V 45A

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: PLNCM-176045
Payment & Shipping Terms:
Minimum Order Quantity: 2-49 Pieces
Price: Negotiable

Common Port With Balance Li Ion Battery BMS , PCB Protection Board BMS 17S 60V 45A

Description
Keywords: Li Ion Battery BMS Product Name: Battery Management Systems
Base Material: FR-4 Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
Board Thickness: 2mm Min. Line Spacing: 0.065mm
Surface Finishing: HASL Application: Battery Packs
High Light:

PCB Li Ion Battery BMS

,

45A Protection Board BMS

,

HASL PCB Protection Board BMS

Li Ion Battery BMS PCB Li-Ion Protection Board BMS 17S 60V 45A Common Port With Balance

Li-Ion Battery BMS Description:

1. The reason why the lithium-ion battery needs to be protected is determined by its own characteristics. Since the material of the lithium-ion battery itself determines that it cannot be overcharged, over-discharged, overcurrent, short-circuited and ultra-high temperature charge and discharge, the lithium-ion battery components will always appear with a delicate protection board and a current fuse.
2. The BMS protection function of the lithium-ion battery is usually completed by the protection circuit board and current devices such as PTC. The protection board is composed of electronic circuits, which can accurately monitor the voltage and The current of the charging and discharging circuit can control the on-off of the current circuit in time; PTC can prevent the battery from being badly damaged in a high-temperature environment.
3. Ordinary lithium-ion battery BMS protection board usually includes a control IC, MOS switch, resistor, capacitor and auxiliary devices FUSE, PTC, NTC, ID, memory, etc. Among them, the control IC controls the MOS switch to turn on when everything is normal so that the cell is connected to the external circuit, and when the cell voltage or loop current exceeds the specified value, it immediately controls the MOS switch to turn off to protect the battery cell. Safety.

Li-Ion Battery BMS Parameter:

Model Number PLNCM-176045 Product name Battery Management Systems
Place of Origin Guangdong, China Application Battery Packs
Brand Name Passional Usage Lithium Battery Packs
Base Material FR-4 Number of Layers 3 Layers
Copper Thickness 1/2OZ 1OZ 2OZ 3OZ Communication no
Board Thickness 2mm Size 95MM*58MM*17MM
Min. Hole Size 0.1mm Weight 0.165kg
Min. Line Width 0.065mm Function Balance Function
Min. Line Spacing 0.065mm Color Green
Surface Finishing HASL Material Aluminum


Li-Ion Battery BMS FAQ:

1. How about the quality&warranty time?
All brand products are 100% imported. All products provided 12 monthly warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
Usually, we have stable stock in the warehouse. The goods can be sent within 2-7 days.
