Product Details:
|
| Keywords: | Li Ion Battery BMS | Product Name: | Battery Management Systems |
|---|---|---|---|
| Base Material: | FR-4 | Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ |
| Board Thickness: | 2mm | Min. Line Spacing: | 0.065mm |
| Surface Finishing: | HASL | Application: | Battery Packs |
| High Light: | Protection Board BMS 45A,FR4 Base Protection Board BMS,1OZ Li Ion Battery BMS |
||

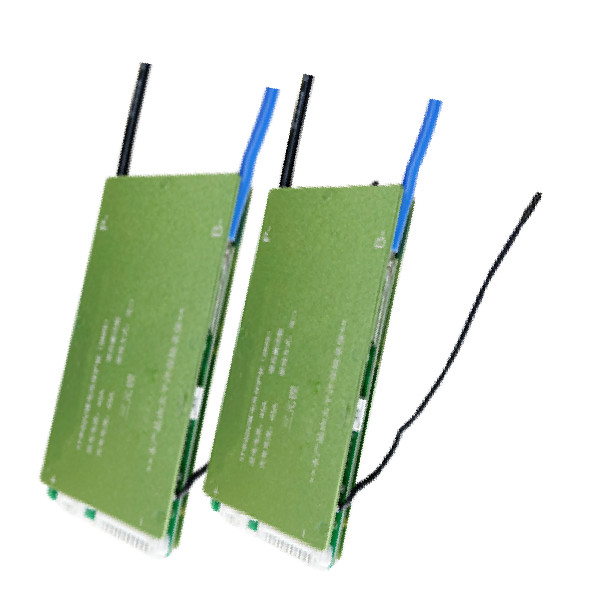

Li Ion Battery BMS Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance
Li-Ion Battery BMS Description:
1. The reason why the lithium-ion battery needs to be protected is determined by its own characteristics. Since the material of the lithium-ion battery itself determines that it cannot be overcharged, over-discharged, overcurrent, short-circuited and ultra-high temperature charge and discharge, the lithium-ion battery components will always appear with a delicate protection board and a current fuse.
2. Ordinary lithium-ion battery BMS protection board usually includes a control IC, MOS switch, resistor, capacitor and auxiliary devices FUSE, PTC, NTC, ID, memory, etc. Among them, the control IC controls the MOS switch to turn on when everything is normal so that the cell is connected to the external circuit, and when the cell voltage or loop current exceeds the specified value, it immediately controls the MOS switch to turn off to protect the battery cell. Safety.
Li-Ion Battery BMS Parameter:
| Model Number | PLNCM-176045 | Product name | Battery Management Systems |
| Place of Origin | Guangdong, China | Application | Battery Packs |
| Brand Name | Passional | Usage | Lithium Battery Packs |
| Base Material | FR-4 | Number of Layers | 3 Layers |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Communication | no |
| Board Thickness | 2mm | Size | 95MM*58MM*17MM |
| Min. Hole Size | 0.1mm | Weight | 0.165kg |
| Min. Line Width | 0.065mm | Function | Balance Function |
| Min. Line Spacing | 0.065mm | Color | Green |
| Surface Finishing | HASL | Material | Aluminum |
Li-Ion Battery BMS FAQ:
1. How about the quality&warranty time?
All brand products are 100% imported. All products provided 12 monthly warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
Usually, we have stable stock in the warehouse. The goods can be sent within 2-7 days.
4. How long of the shipping time?
lt always needs 3-10 days by expresses such as DHL and UPS,15-50 days by China Post, and 20-30 days by sea.
5. can you produce the order with the customer's brand?
Yes, of course.OEM & ODM service is warmly provided.
