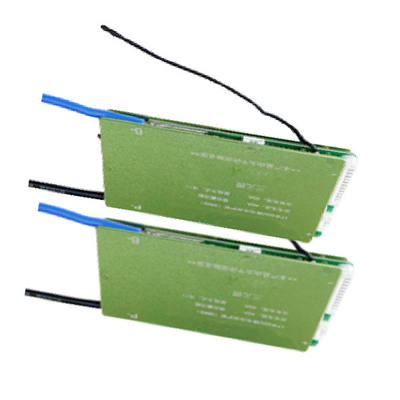

PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance

PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance
PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance

Large Image :  PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: PLNCM-176045
Payment & Shipping Terms:
Minimum Order Quantity: 2-49 Pieces
Price: Negotiable

PCB Li Ion Protection Board BMS 17S 60V 45A Common Port With Balance

Description
Keywords: Li Ion Battery BMS Product Name: Battery Management Systems
Base Material: FR-4 Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
Board Thickness: 2mm Min. Line Spacing: 0.065mm
Surface Finishing: HASL Application: Battery Packs
High Light:

17S Protection Board BMS

,

60V Protection Board BMS

,

Common Port Li Ion Battery BMS

3.7V PCB Li-Ion Protection Board BMS 17S 60V 45A Common Port With Balance



Li-Ion Battery BMS Description:
1. Battery protection board, as the name suggests, a lithium battery protection board is mainly an integrated circuit board that protects rechargeable batteries (usually lithium batteries).
2. The reason why lithium batteries (rechargeable) need protection is determined by their own characteristics. Because the material of the lithium battery itself determines that it cannot be overcharged, over-discharged, overcurrent, short-circuited, or ultra-high temperature charge and discharge.
3. The three basic functions of the lithium battery protection board are short circuit protection, overcharge protection and over-discharge protection.



Li-Ion Battery BMS Parameter:

Model Number PLNCM-176045 Product name Battery Management Systems
Place of Origin Guangdong, China Application Battery Packs
Brand Name Passional Usage Lithium Battery Packs
Base Material FR-4 Number of Layers 3 Layers
Copper Thickness 1/2OZ 1OZ 2OZ 3OZ Communication no
Board Thickness 2mm Size 95MM*58MM*17MM
Min. Hole Size 0.1mm Weight 0.165kg
Min. Line Width 0.065mm Function Balance Function
Min. Line Spacing 0.065mm Color Green
Surface Finishing HALL Material Aluminum



Li-Ion Battery BMS FAQ:

1. How about the quality&warranty time?

All brand products are 100% imported. All products provided 12 monthly warranty.

2. What's the MOQ?

There is no MOQ for samples. For bulk order quantity, the more, the cheaper.

3. How about the lead time?

Usually, we have stable stock in the warehouse. The goods can be sent within 2-7 days.

4. How long of the shipping time?

lt always needs 3-10 days by expresses such as DHL and UPS,15-50 days by China Post, and 20-30 days by sea.

5. can you produce the order with the customer's brand?

Yes, of course.OEM & ODM service is warmly provided.
