2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery
2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery

Large Image :  2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery

Product Details:
Place of Origin: China
Brand Name: PASSIONAL
Model Number: HS022410
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Ployfoam and bybble bag<br>5-ply carton

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery

Description
Keywords: Lithium Battery Tester Product Name: Battery Voltage Balancer
Function: Test Capacity Voltage Current Application: Lithium Battery,acid-lead Battery
Usage: Reference Manual Color: White
Voltage: 6-86V Discharge Current: 0.1-10A
Power Supply: Voltage:100V AC~256V AC Accuracy: 0.1%
High Light:

24S 10A LiFePO4 NMC Prismatic Cells

,

24S NMC Prismatic Cells

,

24S prismatic lithium ion battery

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery

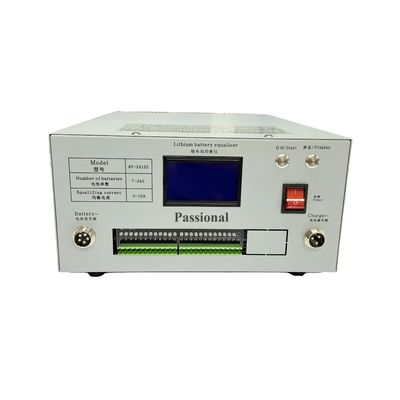

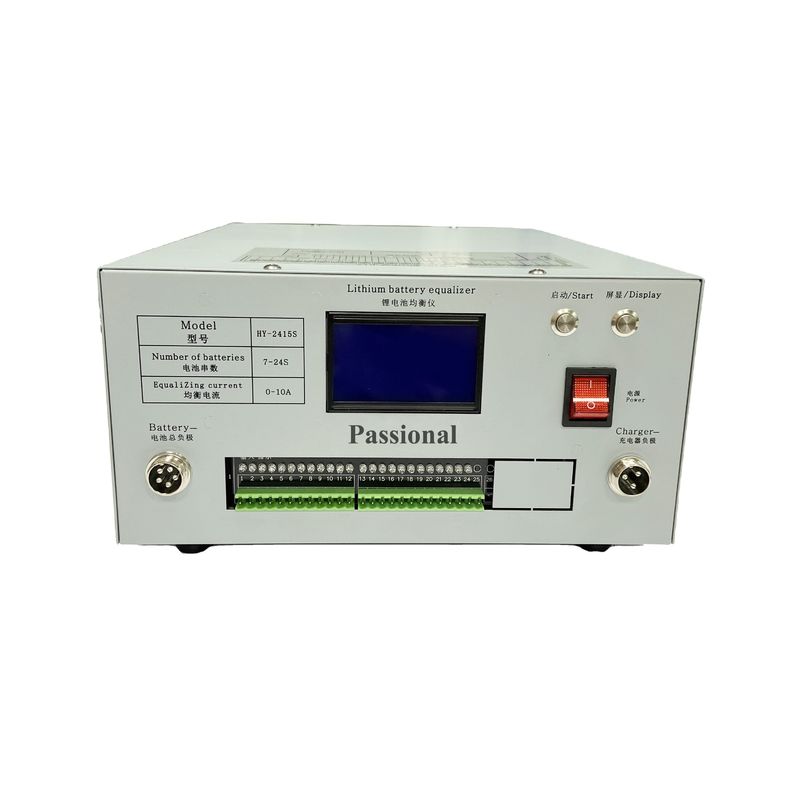

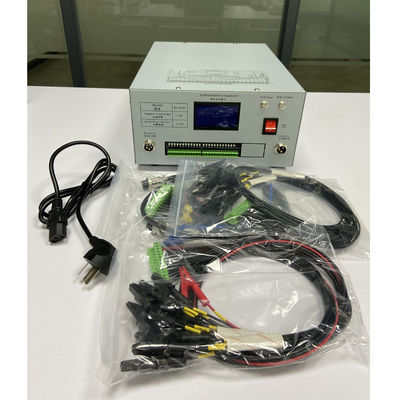

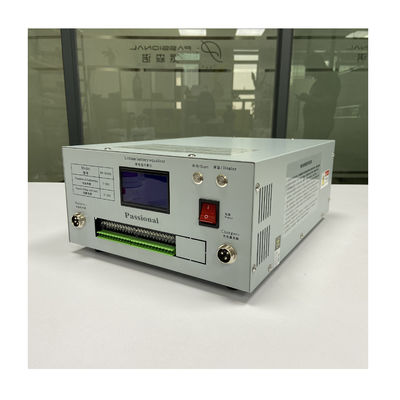

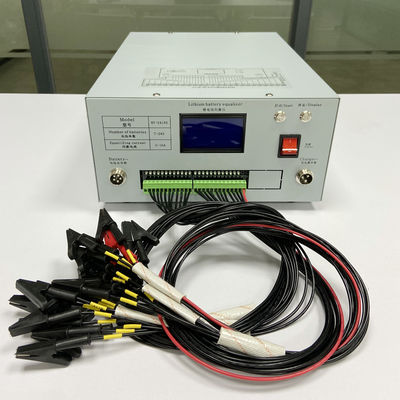

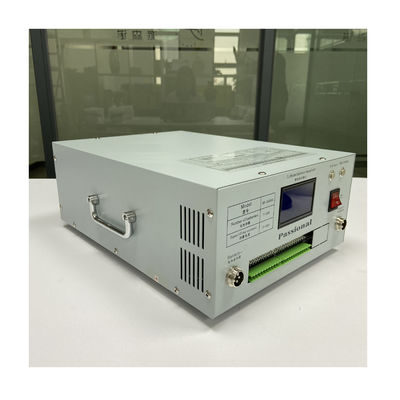

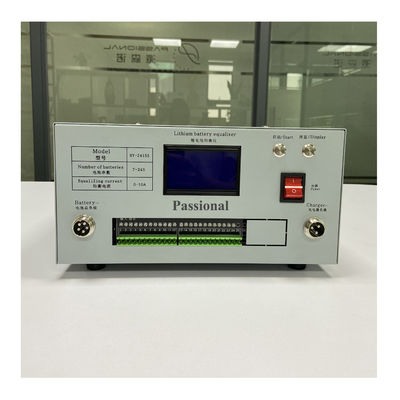

Lithium Battery Tester Description:

1. An HY2415S battery tester is an intelligent machine that can quickly test and balance your battery voltage, making your battery pack voltage consistency up to 0.01V. If you need other larger balance current or higher voltage, please contact us connect.
2. The HY2415S battery tester is designed for voltage balancing of 24-86V battery packs.
3. The HY2415S battery tester supports automatic discharge and automatic charging through a portable external battery charger.
4. When the lithium battery is assembled or the finished battery pack is stored for a long time, due to the different static power consumption of each circuit of the protection board and the self-discharge rate of every single battery, the voltage of every single battery is inconsistent. During the charging process, the voltage of each cell rises at a different rate, resulting in an increase in the voltage difference of the battery pack. The highest voltage series of the single cell triggers the BMS overvoltage protection in advance, causing the entire battery to stop charging. Low-voltage cells cannot be fully charged, and high-voltage cells cannot be discharged. The battery capacity is reduced and the lifespan is shortened. Equalization is a key technique to resolve cell-unit differences. Commonly used methods are discharge equalization and charge equalization. Balance has the effect of balancing the voltage of the lithium battery pack, so as to achieve the effect of full charge and full discharge of the battery pack capacity, restore the battery pack to the maximum capacity, and prolong the service life of the battery pack.
5. Work easily, monitor the battery voltage and capacity of your phone.
6. Smart and fast, you can connect the battery to the two antenna sockets on the front panel of the tester. Connect the battery positively to the left socket and the negative to the right socket.
7. Charger connection, you can connect a portable external charger to the two binding posts on the rear panel. Connect the positive pole of the charger to the red terminal and the negative pole to the black terminal.



Lithium Battery Tester Parameter:

Product Name
2-24S 3-86V battery voltage difference balancer equalizer for lithium battery/LFP battery /Li-po Battery
Input power supply
AC 100-240V
Voltage setting range:
24-86.00V, stepper 0.001V
Discharge current:
0.10-10.00A, stepper 0.1A
Detection Mode
DSC: CV discharge, Voltage lower than the cut-off voltage set then stop automatically
CHG: Charing through the external charger, Current lower the cut-off current set then stop automaticly
Discharge voltage detection
0.10-102.00V, stepper 0.001V,
Voltage detection:
0.001V
Cable connection
Voltage and current channels separated for high test accuracy
LCD display
voltage, current, time, etc
Phone connection:
connect the battery and monitor the phone by Bluetooth



Lithium Battery Tester Factory:

Shenzhen Paisen Import & Export Co., Ltd. specializes in the production, sales and research, and development of various lithium-ion battery packs, lithium battery protection management systems, lithium battery testing equipment, and other related products. Products are widely used in electric bicycles, pure electric low-speed vehicles, special vehicles, telecom backup power, solar home energy storage systems, and outdoor mini emergency backup power. We have more than 10 years of battery manufacturing experience and a professional R&D team of more than 10 people. Several hardware and software engineers. We are known for excellent quality, competitive prices, first-class craftsmanship, safe packaging, and prompt delivery. Since its establishment, we have had our own production base in Guangdong. And maintain long-term cooperation with battery manufacturers in Europe and many countries in the world. With excellent product quality, an efficient marketing team, and professional after-sales service, we strive to meet customer needs more sincerely. We can develop and produce batteries according to customers' designs and requirements. We provide a one-stop purchasing service, where you can find all major accessories related to lithium batteries, saving customers time and money.



2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 0



2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 1

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 3

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 5

2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 9
2S-24S 10A LiFePO4 NMC Prismatic Cells Prismatic Lithium Ion Battery 11
