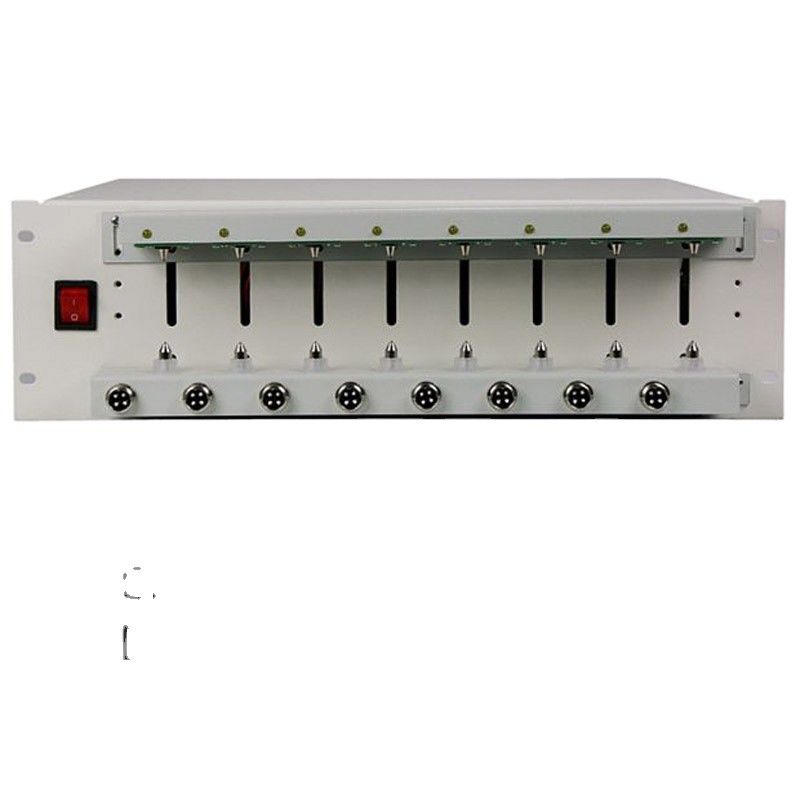

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester
18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester
18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester

Large Image :  18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester

Product Details:
Place of Origin: China
Brand Name: ZKE
Model Number: EBC-B20H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester

Description
Keywords: Lithium Battery Tester Product Name: Battery Tester
Function: Discharge And Charge Application: Lithium Battery,acid-lead Battery
Usage: Reference Manual Color: White
Voltage: 5V Discharge Current: 0.1-10A
Power Supply: Voltage:100V AC~256V AC Accuracy: 0.1%
Selling Units: Single Item Single Package Size : 55X38X30 Cm
Single Gross Weight: 13.000 Kg Package Type: Ployfoam And Bybble Bag 5-ply Carton
High Light:

8 Channel Battery Charge Discharge Tester

,

5V 10A Battery Charge Discharge Tester

,

18650 battery charge discharge meter

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester



Lithium Battery Tester Description:

1. The tester is designed for capacity test the battery cell or battery pack packs which is not over 5V
2. You can set up discharging current and cut-off voltage.
3. The tester supports automatic discharge and with a portable external battery charger, it allows automatic charge.
4. Connect it to a computer for a complete test graph and extensive functions.


Lithium Battery Tester Parameter:

Product Name
8 Channel battery capacity Tester for acid-lead /lithium battery/LFP battery /Li-po Battery
Input power supply
AC 100-240V
Voltage setting range:
0-5V, stepper 0.01V
Discharge current:
0.10-10.00A, stepper 0.01A
Detection Mode
DSC: CV discharge, Voltage lower than the cut-off voltage set then stop automatically
CHG: Charing through the external charger, Current lower the cut-off current set then stop automatically
Discharge voltage detection
0.10-5V, stepper 0.01V,
Cable connection
Voltage and current channels separated for high test accuracy
LCD display
voltage, current, time, capacity, etc
PC connection:
the tester can connect to a computer through a designated USB-TTL cable
for more functions, like graphs, calibration, firmware upgrades, and test circulation

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 0

Lithium Battery Tester Factory:

Shenzhen Paisen Import & Export Co., Ltd. specializes in the production, sales and research, and development of various lithium-ion battery packs, lithium battery protection management systems, lithium battery testing equipment, and other related products. Products are widely used in electric bicycles, pure electric low-speed vehicles, special vehicles, telecom backup power, solar home energy storage systems, and outdoor mini emergency backup power. We have more than 10 years of battery manufacturing experience and a professional R&D team of more than 10 people. Several hardware and software engineers. We are known for excellent quality, competitive prices, first-class craftsmanship, safe packaging, and prompt delivery. Since its establishment, we have had our own production base in Guangdong. And maintain long-term cooperation with battery manufacturers in Europe and many countries in the world. With excellent product quality, an efficient marketing team, and professional after-sales service, we strive to meet customer needs more sincerely. We can develop and produce batteries according to customers' designs and requirements. We provide a one-stop purchasing service, where you can find all major accessories related to lithium batteries, saving customers time and money.

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 1
18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 2
18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 3
18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 4

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 5

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 6

18650 21700 32650 8 Channel 5V 10A Battery Charge Discharge Tester 7
