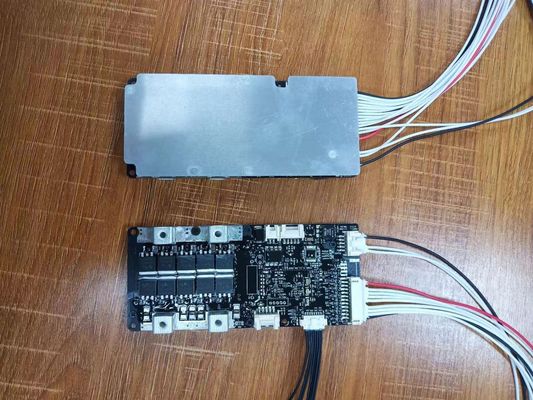

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A
Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A
Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A

Large Image :  Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A

Product Details:
Place of Origin: China
Brand Name: Passional
Model Number: PLNCM-134880
Payment & Shipping Terms:
Minimum Order Quantity: 2-99 Pieces
Price: Negotiable

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A

Description
Base Material: FR-4 Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
Board Thickness: 2mm Min. Hole Size: 0.1mm
Min. Line Width: 0.065mm Min. Line Spacing: 0.065mm
Surface Finishing: HASL Product Name: Battery Management Systems
Application: Battery Packs Usage: Lithium Battery Packs
Number Of Layers: 3 Layers Communication: No

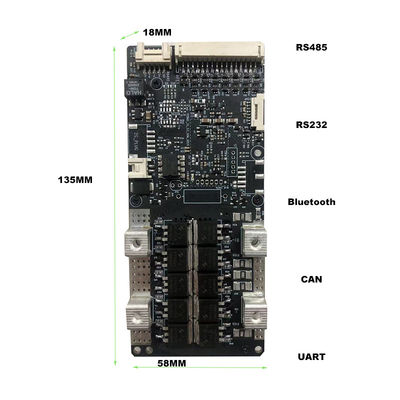

Size: 135MM*58MM*18MM Weight: 0.185kg
Function: Balance Function Color: Silver
Material: Alumimum Selling Units: Single Item
Single Package Size : 13X8X9 Cm Single Gross Weight: 0.300 Kg
Package Type: Bubble Pack And Carton
High Light:

20S Battery Pack BMS

,

3S Battery Pack BMS RS485

,

72V 20S BMS 200A

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A



How to choose the right BMS board?
1. Determine your battery type (ternary/NCM, lithium iron/LFP, lithium titanate/LTO) and determine
The number of strings and parallels of the battery pack. Choose according to the number of concatenations.
2. Determine whether the battery pack is charged and discharged in the same port or in different ports. The charging and discharging of the same port is the same line, but a separate port is an independent charging and discharging line.
3. Determine the current value required by the protection board: I=P/U. That is, current = power/voltage. . Remember that this is only a theoretical value. In fact. We use this theoretical value as a reference. Taking into account the load, uphill and just starting environment, generally two-wheeled electric vehicles choose more than 2 times the theoretical value. Three-wheeled electric vehicles choose more than 3 times this theoretical value. Four-wheel low-speed vehicles generally have about 3.5 times. For inverters and energy storage products, 1.2 times is enough. Or refer to the current limit of the electric vehicle controller. ensure. The current value of the guard plate must be greater than the control current limit value.



Smart BMS Battery Parameter:


Content
Specification
Unit
Remark
Discharge
Continuous Discharge Current
80
A

Plus Discharge Current
240±20
A

Charge

Charge cut-off voltage

54.6
V

Max charge current
30(MAX)
A

Over Charge protection
Overcharge detection voltage
4.25±0.05
V

Overcharge detection delay time
600±300
MS

Overcharge release voltage
4.15±0.05
V

Balance Portection
Balance Detection voltage
4.18
V

Balance release detection voltage
4.18
V

Balance current
35±5
mA

Overdischarge Portection
Overdischarge detection voltage
2.7±0.05
V

Overdischarge detection delay time
600±300
MS

Overdischarge release voltage
3.0±0.05
V

Overcurrent Portection
Overcurrent detection voltage
100
mV

Overcurrent protection current
135±20
A

Overcurrent detection delay time
600±300
MS
can set as per your request
Release condition
Cut short load


Short Protection
Detection condition
Out load short cycles


Detection delay time
300±100
uS

Release condition
Cut load


Temp. protection
Over Charge protection temp.
-20~50
can set as per your request
Over Disharge protection temp.
-20~70


Interior resistance
Main loop electrify resistance
≤10

Current consumption
Current consume in normal operation
≤100
uA


Sleep current(over discharge)
≤20
uA

Working Temp.
Temp. range
-20/80

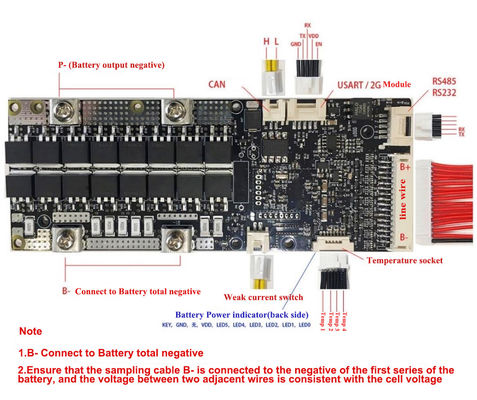

How to connect the BMS to the battery pack?
1. Start from the B- wire to the negative of the battery (B- wire needs to be soldered with a short wire first), then connect the flat cable (the flat cable needs to be removed from the board before connecting the flat cable).
2. Start wiring from B0, connect B0 to the total negative of the battery (this string is not number 1), connect cable B1 next to B0 to the positive of series 1, and connect the third cable B2 to the positive of series 2. The fourth cable B3 is connected to the positive pole of the AA battery ------ and so on.
3. After connecting the cables, measure the voltage between every two adjacent cables from the connector. The voltage of the lithium-ion battery should be less than 4.2V, and the voltage of the lithium-iron phosphate battery should be less than 3.5V.
4. Connect the negative pole of the charger and the negative pole of the load to C-. B negative wire and C negative wire need to be welded with thick wire. The wiring method has nothing to do with the color, just the correct order.
5. Then measure whether the total battery voltage is equal to the output voltage of the protection board, if it is equal, it means that the BMS is working normally.

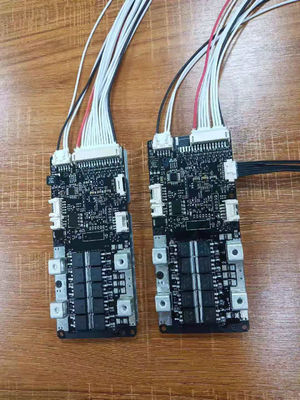

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A 0

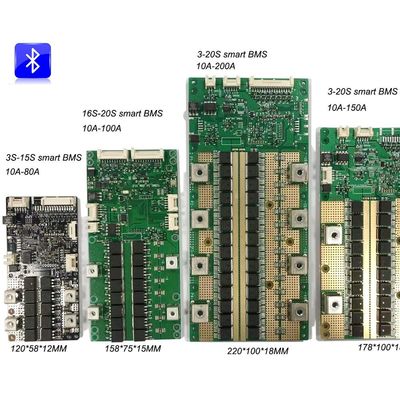

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A 1

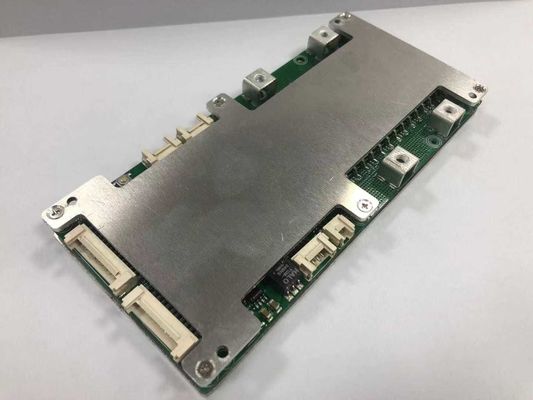

Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A 2
Battery BMS Board 3S-20S Battery Pack BMS RS485 RS232 72V 20S BMS 200A 3
