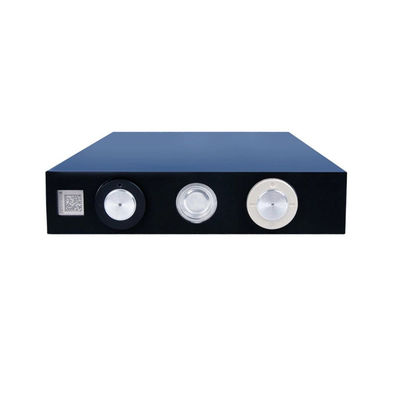

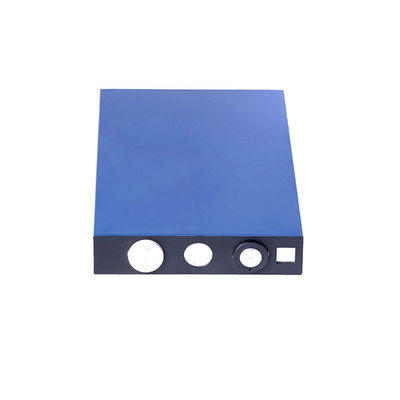

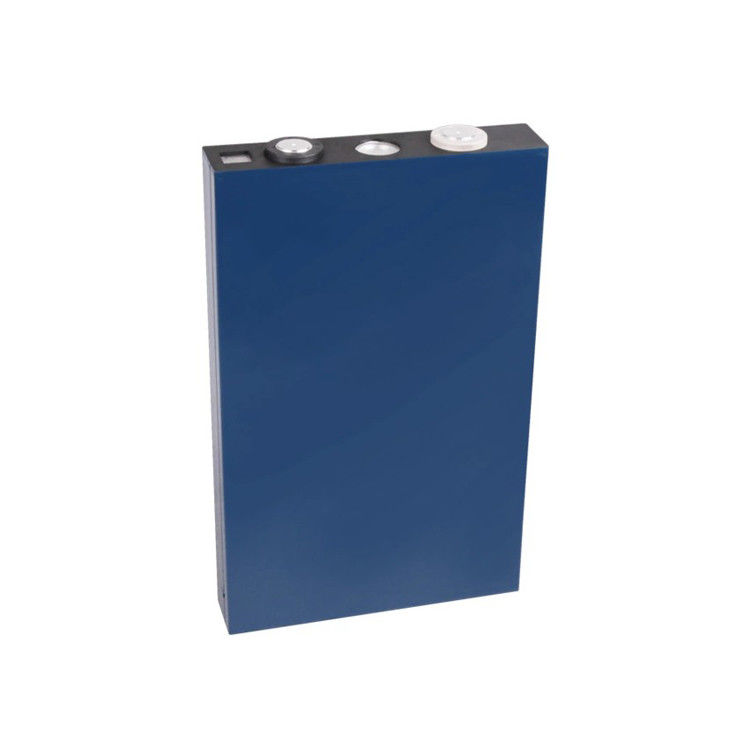

MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG

MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG
MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG

Large Image :  MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG

Product Details:
Place of Origin: China
Brand Name: CALB
Certification: MSDS
Model Number: 09111220
Payment & Shipping Terms:
Minimum Order Quantity: 4-49 Pieces
Price: Negotiable

MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG

Description
Keywords: LiFePO4 Prismatic Cell Application: Electric Folklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles
Battery Size: 135*29*199mm Weight: 1.65KG
Nominal Voltage: 3.2 Volt Nominal Capacity: 68ah
Cycle Life: 3000times Size: 135*29*199mm
Selling Units: Single Item Single Package Size : 3.67X15X25 Cm
Single Gross Weight: 1.800 Kg Origin: Guangdong, China
High Light:

MSDS 3.2V 68AH CALB LiFePO4

,

1.65KG CALB LiFePO4 Battery

,

1.65KG CALB LiFePO4 Batteries

MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells 1.65KG



LiFePO4 Prismatic Cell Description:

MSDS 3.2V 68AH CALB LiFePO4 Battery Lithium Prismatic Cells can be widely used for electric, vehicle, motorcycle, scooter, golf carts as well as solar power systems and etc.



LiFePO4 Prismatic Cell Parameter:

Keywords:

LiFePO4 Prismatic Cell

Application:

Electric Forklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES, Electric Bicycles

Battery Size:

135*29*199mm

Weight:

1.65KG

Nominal Voltage:

3.2 Volt

Nominal Capacity:

68ah

Cycle Life:

3000times

Size:

135*29*199mm

Selling Units:

Single Item

Single Package Size :

3.67X15X25 Cm

Single Gross Weight:

1.800 Kg

Origin:

Guangdong, China





Nominal Voltage
3.2V
Nominal Capacity
68Ah
Standard Charge Current 13.6A (0.2C rate)
Max. Charge Current
68A (1C rate)
Charge Cut-off Voltage
3.65V
Standard Constant Discharge current
68A/1C
Max Constant Discharge current 136A/2C
Discharge Cut-off Voltage
2.5V
Inner Resistance
≤ 1mΩ (At 0.2C rate, 2.5V cut-off)
Weight
1.65Kg
Dimensions
Length: 199mm
Width: 135.2mm
Thickness: 29.5mm
Operating Temperature
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
Storage Temperature/Humidity
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long-term storage)
Cycle Life ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)



Model No. CALBLFP72 CALBLFP80 CALBLFP100 CALBLFP180 CALBLFP200
Rated Capacity 72Ah 80Ah 100Ah 180Ah 200Ah
Nominal Voltage (V) 3.2V 3.2V 3.2V 3.2V 3.2V
Chemistry LiFePo4 LiFePo4 LiFePo4 LiFePo4 LiFePo4
Internal Impedance ≤0.4mΩ ≤0.4mΩ ≤0.4mΩ ≤0.5mΩ ≤0.6mΩ
Shell Material Aluminum Aluminum Plastic Plastic Plastic
Dimension? (mm) H*W*D 220x135x29 220x135x29 216x142x67 279x180x71 279x182x71
Weight(Kg) 1.75±0.15 kg 1.87±0.15 kg 3.3±0.15 kg 5.6±0.15 kg 5.7±0.15 kg
Maximum continuous discharge current 100A (1C) 80A (1C) 100A (1C) 180A (1C) 200A (1C)
Maximum pulse discharge current 216A (3C) 240A (3C) 200A (2C) 360A (2C) 400A (2C)
Maximum charge current 72A (1C) 80A (1C) 100A (1C) 180A (1C) 200A (1C)
Charge voltage 3.65V 3.65V 3.65V 3.65V 3.65V
End of discharge voltage 2.5V 2.5V 2.5V 2.5V 2.5V
Charging temperature -5°C~60°C -5°C~60°C -5°C~60°C -5°C~60°C -5°C~60°C
Discharging temperature? -30°C~60°C -30°C~60°C -30°C~60°C -30°C~60°C -30°C~60°C



LiFePO4 Prismatic Cell Factory Introduction:

Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.
