Product Details:
|
| Keywords: | Lithium Battery Tester | Product Name: | Battery Capacity Tester |
|---|---|---|---|
| Function: | Test Capacity Voltage Current | Application: | Lithium Battery,acid-lead Battery |
| Usage: | Reference Manual | Color: | White |
| Voltage: | 9-30V | Discharge Current: | 0.1-20A |
| Power Supply: | Voltage:100V AC~256V AC | Accuracy: | 0.1% |
| Selling Units: | Single Item | Single Package Size : | 45X36X20 Cm |
| Single Gross Weight: | 6.500 Kg | Package Type: | Ployfoam And Bybble Bag 5-ply Carton |
| High Light: | 18V 85W LiFePO4 Capacity Testers,18V 85W LiFePO4 Capacity Tester,20A 18V 85W LiFePO4 Capacity Tester |
||

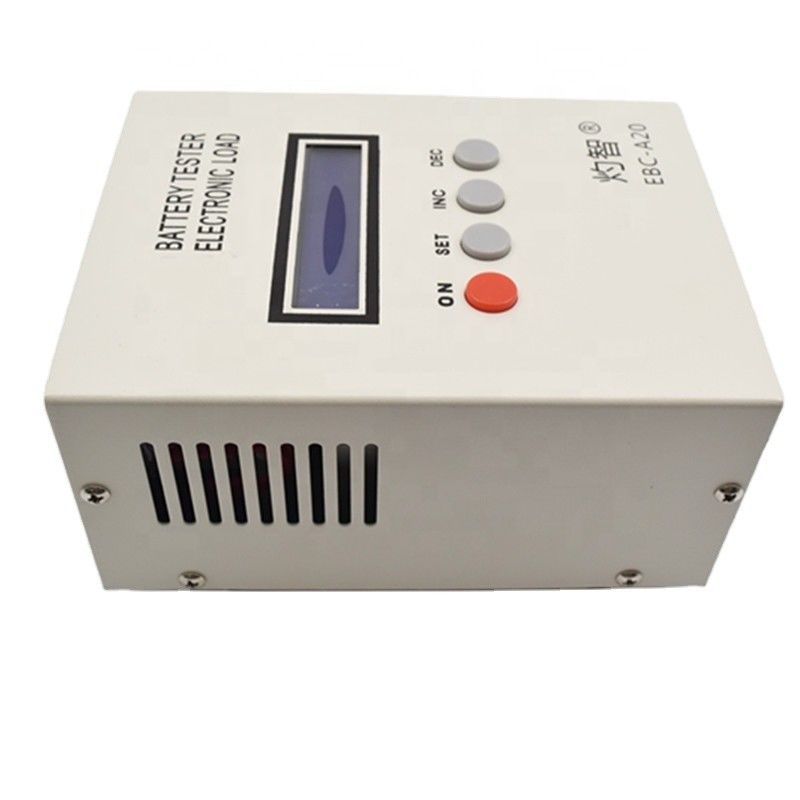

EBC A20 Lithium Battery Tester 20A 18V 85W LiFePO4 Capacity Tester
Lithium Battery Tester Description:
1. EBC-A20H is a battery capacity tester for battery capacity testing in the range of 12V-30V. It has a built-in discharge load resistance, supports external battery pack chargers, automatically switches between charge and discharge, and supports computer online drawing of curves. If you want a bigger voltage 36-108V, please click to see our other models.
2. EBC-A20 Battery Tester This tester is specially designed for a 12-30V battery pack capacity test. You can set the discharge current and cutoff voltage. The tester supports automatic discharge and automatic charging via a portable external battery charger. Connect it to a computer for full test charts and extensive functionality.
3. The EBC-A20 battery tester product list includes tester, test lead, power lead and 19V 4A charger.
Lithium Battery Tester Parameter:
|
Product Name
|
12-30V battery capacity Tester for acid-lead /lithium battery/LFP battery /Li-po Battery
|
|
Input power supply
|
AC 100-240V
|
|
Voltage setting range:
|
9.00-30.00V, stepper 0.01V
|
|
Discharge current:
|
0.10-20.00A, stepper 0.01A(Max 10A for 12V battery pack)
|
|
Detection Mode
|
DSC:vCV discharge, Voltage lower than the cut-off voltage set then stop automatically
|
|
CHG: Charing through the external charger, Current lower the cut-off current set then stop automatically
|
|
|
Discharge voltage detection
|
0.10-30.00V, stepper 0.01V,
|
|
Capacity detection:
|
< 10Ah, accuracy 0.001Ah;
|
|
10-100Ah, accuracy 0.01Ah;
|
|
|
> 100Ah, accuracy 0.1Ah
|
|
|
Cable connection
|
Voltage and current channels separated for high test accuracy
|
|
LCD display
|
voltage, current, time, capacity, etc
|
|
PC connection:
|
the tester can connect to a computer through a designated USB-TTL cable
|
|
for more functions, like graphs, calibration, firmware upgrades, and test circulation.
|
