Product Details:
|
| Keywords: | Li Ion Battery BMS | Base Material: | FR-4 |
|---|---|---|---|
| Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ | Function: | Balance Function |
| Color: | Green | Material: | Aluminum |
| Communication: | No | Number Of Layers: | 3 Layers |
| High Light: | 60V 45A Li Ion Battery BMS,16S 17S Li Ion Battery BMS,BMS Protection Board 3.7V PCB |
||

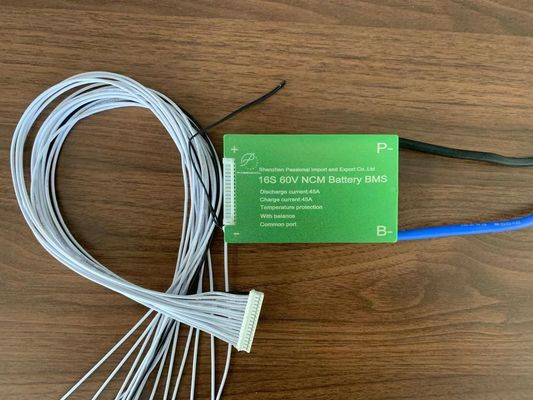

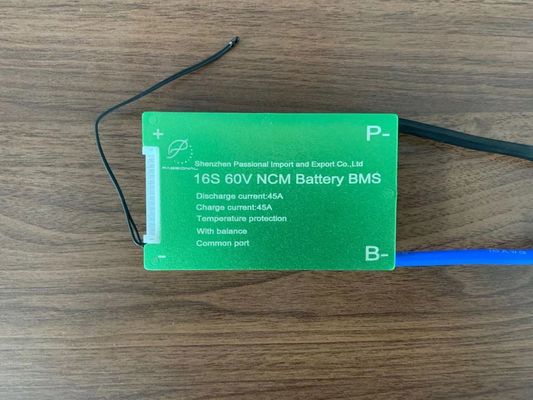

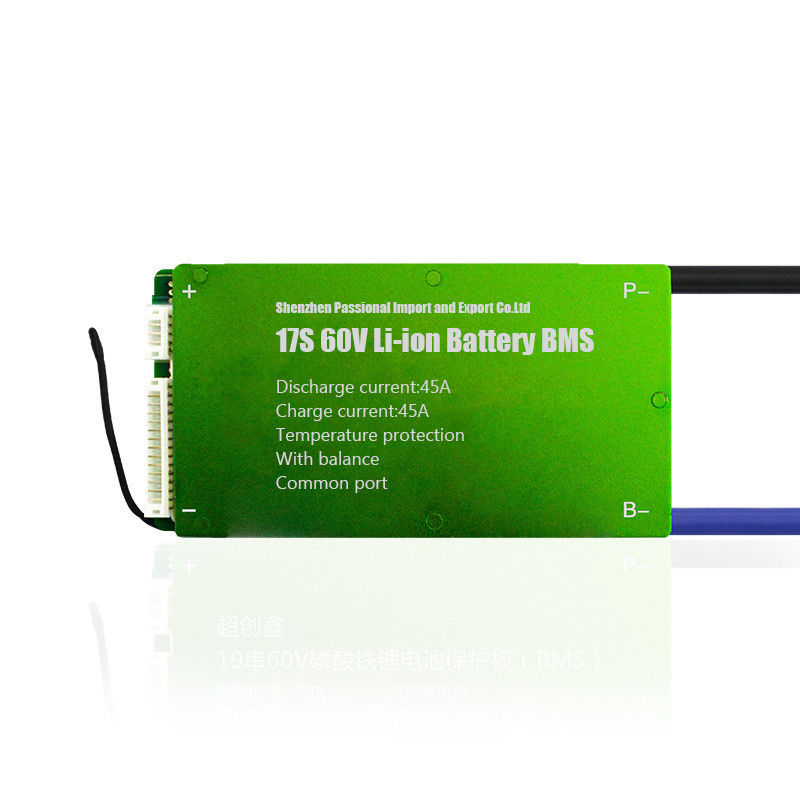

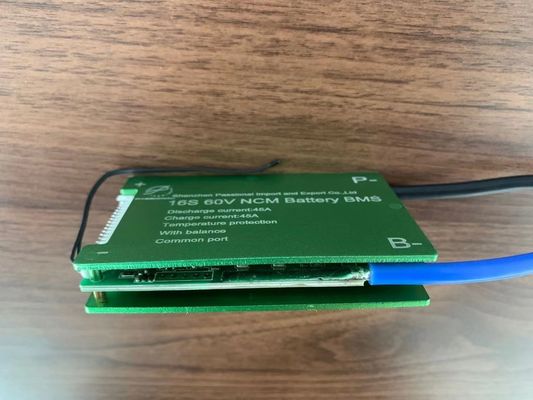

16S 17S 60V 45 A Li-ion battery BMS board 3.7V PCB protection for electric vehicle ebike scooter
Li-Ion Battery BMS Description:
The function of the lithium battery protection plate The composition of the finished lithium battery is as follows: there are two main parts, the lithium battery cell and the protection plate. The lithium battery cell is mainly composed of a positive plate, a diaphragm, a negative plate, and an electrolyte; , The negative plate is wound or laminated, packaged, filled with electrolyte, and the battery is made after packaging. However, many people do not know the function of the lithium battery protection board. The lithium battery protection board, as the name suggests, is used to protect the lithium battery. The function of the lithium battery protection board is to protect the battery from over-discharging, overcharging, over-current, and output short-circuit protection.
Li-Ion Battery BMS Parameter:
| Model Number | PLNCM-176045 | Product name | Battery Management Systems |
| Place of Origin | Guangdong, China | Application | Battery Packs |
| Brand Name | Passional | Usage | Lithium Battery Packs |
| Base Material | FR-4 | Number of Layers | 3 Layers |
| Copper Thickness | 1/2OZ 1OZ 2OZ 3OZ | Communication | no |
| Board Thickness | 2mm | Size | 95MM*58MM*17MM |
| Min. Hole Size | 0.1mm | Weight | 0.165kg |
| Min. Line Width | 0.065mm | Function | Balance Function |
| Min. Line Spacing | 0.065mm | Color | Green |
| Surface Finishing | HASL | Material | Aluminum |
More specifications in 17series 60V BMS
In order to make your battery safer, Please choose the right one which suits you as per your motor and controller specification.
SPECIFICATION | MOS WITHSTAND VOLTAGE | SIZE | WEIGHT |
NCM 17S60V 15A Common port with balance | 85V | 63*47*12MM | 0.075KGS |
NCM 17S60V 25A Common port with balance | 85V | 63*47*12MM | 0.075KGS |
NCM 17S60V 30A Common port with balance | 85V | 95*58*12MM | 0.13KGS |
NCM 17S60V 35A Common port with balance | 85V | 95*58*12MM | 0.13KGS |
NCM 17S60V45A Common port with balance | 85V | 95*58*17MM | 0.18KGS |
NCM 17S60V50A Common port with balance | 85V | 95*58*17MM | 0.19KGS |
NCM 17S60V60A Common port with balance | 85V | 95*58*17MM | 0.21KGS |
NCM 17S60V70A Common port with balance | 100V | 125*62*17MM | 0.36KGS |
NCM 17S60V100A Common port with balance | 100V | 176*68*17MM | 0.37KGS |
NCM 17S60V120A Common port with balance | 100V | 176*68*17MM | 0.39KGS |
NCM 17S60V140A Common port with balance | 100V | 176*68*17MM | 0.41KGS |
NCM 17S60V200A Common port with balance | 100V | 176*68*17MM | 0.43KGS |
FAQ:
Q:1. What's the delivery time for mass production?
A: Usually 3-7days, it depends on the quantity, especially function and etc. we suggest checking delivery time case by case.
Q:2. What is your MOQ?
A: 1pc is OK. small orders are also welcome.
Q:3. What are the common port and separate port? what is the difference?
A:We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current is different, discharge current 16A, charge current 8A.
